ibec_CompressFile
This function allows you to create archives of files and extract them using the ibec_DecompressFile function. Archives currently supported by the ibec_CompressFile function include the following formats:
ZIP, BZIP, GZIP, JAR, LHA, CAB, TAR, BlackHole.
Syntax
function ibec_CompressFile(FileSpec : string; ExcludeFileSpec : string;
ArcType : integer; ArcName : string; Options : string;
CallbackBlock : string) : variant;
The ibec_CompressFile currently returns NULL.

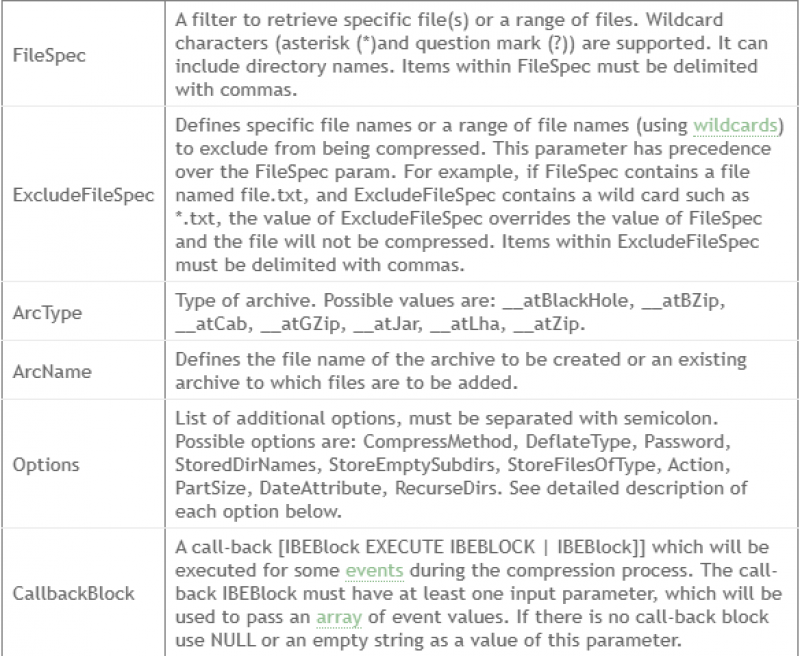

Parameters
Description of possible options
CompressMethod= Store | Deflate | Fuse | Frozen5 | Frozen6 | MsZip | LZX | Quantum |
Tarred | TarGZip | TarBZip | BZip2
The default method (if the CompressMethod option is omitted) for each archive type is:
__atBlackHole: Fuse
__atZip: Deflate
__atLha: Frozen6
__atCab: MsZip
__atGZip: Deflate
__atTar: Tarred
The following is the listing of the value of CompressMethod for each archive type:
__atZip: [Store, Deflate]
__atBlackHole: [Store, Fuse]
__atLha: [Store, Frozen5, Frozen6]
__atCab: [Store, MsZip, Lzx, Quantum]
__atGZip: [Deflate ]
__atTar: [Tarred, TarGZip, TarBZip]
DeflateType= Store | Fast | Normal | Best
This defines the setting for archive types which use the Deflate compression method. The default setting is NORMAL. Different settings either increase compression speed but reduce compression ratios, or increase ratios but decrease speed.
Password= <password> : Use the Password option to add encrypted files to a ZIP and lackHole archives or extract encrypted files from ones. If the value of this property is not blank, the value will be used as the password for encryption/decryption.
StoredDirNames= None | Absolute | AbsoluteNoDrv | AbsoluteNoRoot | Relative | RelativeStoreStart | ExplorerAuto
Use this option to set how directories are to be stored in an archive. The default setting is AbsoluteNoDrv.
Example
USING UNC-Pathnames
FileSpec = '//Server/Group11/Emp4129/*.txt';
StoredDirNames Saved in archive as:
---------------------------------------------------
None proj1.txt
Absolute //Server/Group11/Emp4129/proj1.txt
AbsoluteNoDrv /Emp4129/proj1.txt
Relative proj1.txt (subdirs = dir/*.txt)
RelativeStoreStart Emp4129/proj1.txt (subdirs = mp4129/dir/proj1.txt)
ExplorerAuto proj1.txt (subdirs = dir/*.txt)
Using local drives
FileSpec := 'f:\ZipTV\Project1\proj1.exe';
StoredDirNames: Saved in archive as:
---------------------------------------------------
None proj1.txt
Absolute f:\ZipTV\Project1\proj1.txt
AbsoluteNoDrv \ZipTV\Project1\proj1.txt
Relative proj1.txt (subdirs = dir\proj1.txt)
RelativeStoreStart project1\proj1.txt (subdirs = Project1\dir\*.txt)
ExplorerAuto proj1.txt (subdirs = dir\proj1.txt)
StoreEmptySubDirs= TRUE | FALSE
When the value of this option is True, empty sub-directories names are stored to the archive. The default setting is True.
StoreFilesOfType=<list_of_file_extensions>
This property contains a listing of file extensions delimited with commas or spaces. Any file whose extension is contained within this list will not be compressed, but stored within the archive during compression.
The default value is .LZH, .PAK, .PK3, .PK_, .RAR, .TAR, .TGZ, .UUE, .UU, .WAR, .XXE, .Z, .ZIP, .ZOO.
Note: The extension separator (dot) character for each extension in the list is mandatory!
Action= Add | Move | Delete | Read
This option defines what action the ibec_CompressFile function is to perform.
Possible values are:
| Add | Adds files to an archive if they are found not to already exist in the archive. If they do already exist, a comparison of files date stamp with the date stored in the archive is made. If the date stamps do not match, the file is recompressed, otherwise it is skipped. If the desired CompressMethod of compression is different than the method previously used to compress the file, then the file is recompressed, otherwise it is skipped. If the archive doesn't already exist, it is created and all files matching FileSpec are compressed and added to the archive. |
| Move | Follows the same convention as Add, but deletes all files on disk that were added to the archive. Files are deleted only after a successful ADD. |
| Delete | Deletes all files matching FileSpecfrom an existing archive. |
| Read | Reserved for future use. The default value for this option is Add. |
PartSize=<int_value>[KB|K|MB|M|B] - Use this option to specify the file-size of the output volumes for a multi-volume ZIP archive. For example, PartSize=100MB. PartSize value must be at least 65 KB.
DateAttribute= FileDate | SysDate | MaxFileDate - Use this option to define a file's date when extracted to disk. Use this property to define a file's date to be stored into an archive. Possible values:
- FileDate - set the extracted file's date using the date stored in the archive; store the date using the disk file's date being compressed.
- SysDate - set the extracted file's date using the systems date/time; store the date using the current system's date.
- MaxFileDate - set the extracted file's date using the date from the newest file in the archive; store the date using the newest file's date matching FileSpec.
RecurseDirs - TRUE | FALSE - Use this option to recurse sub-directories for files matching the FileSpec parameter. The default value is False.
OverwriteMode - Skip | Overwrite - Use the OverwriteMode property to either skip or overwrite files that already exist on disk. The default value is Skip.
ConfirmOverwrites - TRUE | FALSE - The ConfirmOverwrites option is directly related to the OverwriteMode option. The default value is False. This option is reserved for future use, please don't change it yet!
RestoreFileAttributes - TRUE | FALSE - When True, this sets an extracted file's attribute to the setting stored in the compressed header for that file. The default value is True.
UseStoredDirs - TRUE | FALSE - When set to False, this uses the current directory to extract files into, if the TargetDir property is blank. When set to True, the default is the current directory information existing in regard to the internal compressed file. The default value is False.
Example
execute ibeblock
as
begin
cbb = 'execute ibeblock (Vals variant)
as
begin
EventName = Vals[''EVENT''];
Action = Vals[''ACTION''];
File name = Vals[''FILE NAME''];
if (Action = ''COMPRESS'') then
sPref = ''Adding '';
else
sPref = ''Extracting '';
if (EventName = ''FILEBEGIN'') then
ibec_Progress(sPref + File name + ''...'');
else if (EventName = ''PROGRESS'') then
begin
iBytes = Vals[''BYFILE''];
if (ibec_Mod(iBytes, 5) = 0) then
ibec_Progress(sPref + File name + ''... '' + ibec_Cast(iBytes, __typeString) +
''%'');
end;
end';
ibec_DecodeDate(ibec_Now(), iYear, iMonth, iDay);
ArcName = 'E:\IBE_' + ibec_Cast(iYear, __typeString) + '_' + ibec_Cast(iMonth, __typeString)
+
'_' + ibec_Cast(iDay, __typeString) + '.zip';
if (ibec_FileExists(ArcName)) then
begin
ibec_ShowMessage('Nothing to do.');
Exit;
end;
-- Compressing
CompressOptions = 'CompressMethod=Deflate; RecurseDirs=Yes; DeflateType=Best;
StoredDirs=AbsoluteNoRoot';
FileSpec = 'D:\MyProjects\IBExpert\*.*, D:\MyProjects\IBEScript\*.*, D:\MyComponents\*.*';
ExcludeSpec = '*.dcu, *.~*, *.bak';
MyVar = ibec_CompressFile(FileSpec, ExcludeSpec, __atZip, ArcName, CompressOptions, cbb);
end;
