Advanced debugging event block

White Paper: Advanced debugging event block

The Event Blocks feature allows you to process certain events within IBExpert.

The latest IBExpert version includes a new feature for advanced debugging, but the blocks have to be added from external templates. These are PSQL Debugger events:

Before debugging a PSQL object and On Get modified PSQL source

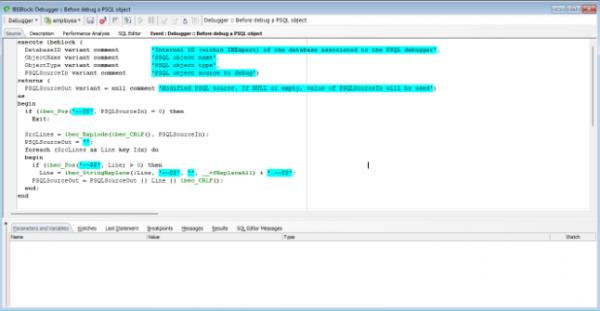

So, the first block (Before debugging a PSQL object) template now looks as follows:

execute ibeblock (
  DatabaseID variant comment         'Internal ID (within IBExpert) of the database associated to the PSQL debugger',
  ObjectName variant comment         'PSQL object name',
  ObjectType variant comment         'PSQL object type',
  PSQLSourceIn variant comment       'PSQL object source to debug')
returns (
  PSQLSourceOut variant = null comment 'Modified PSQL source. If NULL or empty, value of PSQLSourceIn will be used')
as
begin
  if (ibec_Pos('--$$', PSQLSourceIn) = 0) then
    Exit;

  SrcLines = ibec_Explode(ibec_CRLF(), PSQLSourceIn);
  PSQLSourceOut = '';
  foreach (SrcLines as Line key Idx) do
  begin
    if (ibec_Pos('--$$', Line) > 0) then
      Line = ibec_StringReplace(:Line, '--$$', '', __rfReplaceAll) + ' --$$';
    PSQLSourceOut = PSQLSourceOut || Line || ibec_CRLF();
  end;
end

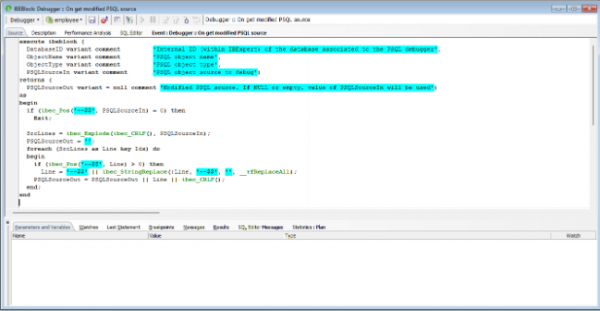

And the second one (On Get modified PSQL source) template:

execute ibeblock (
  DatabaseID variant comment         'Internal ID (within IBExpert) of the database associated to the PSQL debugger',
  ObjectName variant comment         'PSQL object name',
  ObjectType variant comment         'PSQL object type',
  PSQLSourceIn variant comment       'PSQL object source to debug')
returns (
  PSQLSourceOut variant = null comment 'Modified PSQL source. If NULL or empty, value of PSQLSourceIn will be used')
as
begin
  if (ibec_Pos('--$$', PSQLSourceIn) = 0) then
    Exit;

  SrcLines = ibec_Explode(ibec_CRLF(), PSQLSourceIn);
  PSQLSourceOut = '';
  foreach (SrcLines as Line key Idx) do
  begin
    if (ibec_Pos('--$$', Line) > 0) then
      Line = '--$$' || ibec_StringReplace(:Line, '--$$', '', __rfReplaceAll);
    PSQLSourceOut = PSQLSourceOut || Line || ibec_CRLF();
  end;
end

In practice, this means that you can use the new method of commenting while debugging. To comment you should use following string: –$$. The comment will be removed while in the debugger. For example:

The original source would be something like:

create procedure
returns (id bigint)
as
begin
  for
    select id
    from customer
--$$ where id=123
    into id
do
suspend;
end

The before event block will change the code to:

create procedure
returns (id bigint)
as
begin
  for
    select id
    from customer
     where id=123  --$$
    into id
do
suspend;
end

and the after event block changes the code back before compilation:

create procedure
returns (id bigint)
as
begin
  for
    select id
    from customer
--$$ where id=123
    into id
do
suspend;
end

After that, only when the debugger code was changed and the user confirms the changes to be used for the stored procedure.
